Segmented Bends

The principal application of SpeedLock Modular Ducting is any manufacturing industry where fumes, dust or other suspended airborne matter requires extraction without leakage of air or conveyed product, into the immediate atmosphere.

Code B

Dimensional specifications are given in the table below

Dimensional Specifications

Product Code	D mm	S mm	A 90° Weight-kg	B 60° Weight-kg	C 45° Weight-kg	D 30° Weight-kg	E 15° Weight-kg	F 7.5° Weight-kg
B325	325	0.90	6.30	4.70	3.20	2.40	1.20	0.60
B350	350	0.90	5.40	5.00	3.80	2.90	1.40	0.70
B375	375	0.90	8.40	6.30	4.20	3.20	1.60	0.80
B400	400	0.90	9.55	7.20	5.00	3.80	1.80	0.90
B425	425	0.90	10.80	8.10	5.40	4.00	2.00	1.00
B450	450	0.90	12.00	9.00	6.00	4.50	2.25	1.10
B475	475	0.90	13.50	10.10	6.80	5.10	2.50	1.25
B500	500	0.90	15.00	11.20	7.50	5.60	2.80	1.40
B550	550	0.90	18.00	13.50	9.00	6.80	3.40	1.70
B600	600	0.90	21.50	16.10	10.75	8.05	4.00	2.00
B630	630	0.90	22.40	16.80	11.20	8.40	4.20	2.10
B650	650	0.90	25.00	18.80	12.50	9.40	4.70	2.35
B700	700	0.90	29.00	21.80	14.50	10.90	5.40	2.70
B750	750	0.90	33.00	24.80	16.50	12.40	6.20	3.10
B800	800	1.00	37.50	28.10	18.75	14.05	7.00	3.50
B850	850	1.00	42.50	32.00	21.25	16.00	8.00	4.00
B900	900	1.00	48.00	36.00	24.00	18.00	9.00	4.50
B950	950	1.00	53.00	39.80	26.50	20.00	10.00	5.00
B1000	1000	1.00	59.00	44.00	29.50	22.00	11.00	5.50

All product design specifications are subject to change without notice.

Images are for illustration purposes only

Material

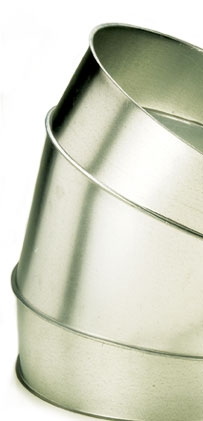

Segmented galvanised steel bends

Sizes
Diameter: 450mm - 550mm
Bend angle: 7.5° to 90°
Other dimensions available to order
R = 1.5 x D
